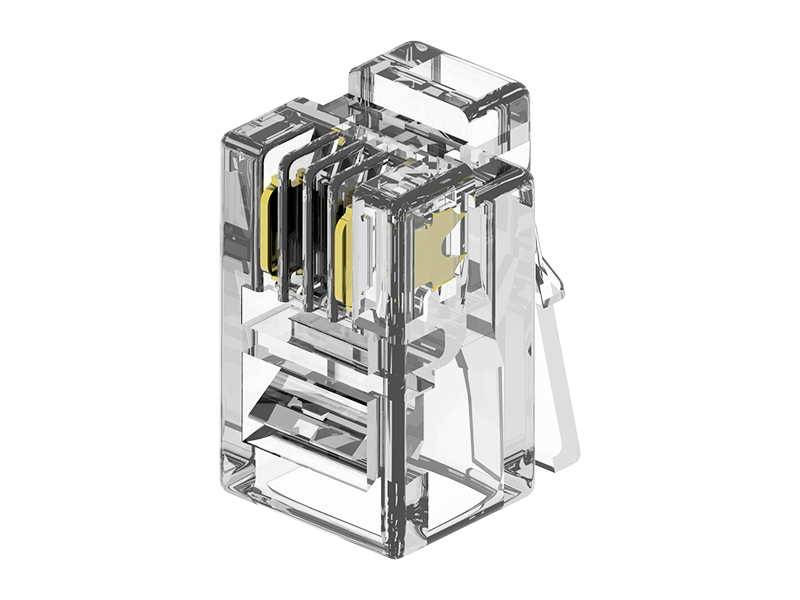

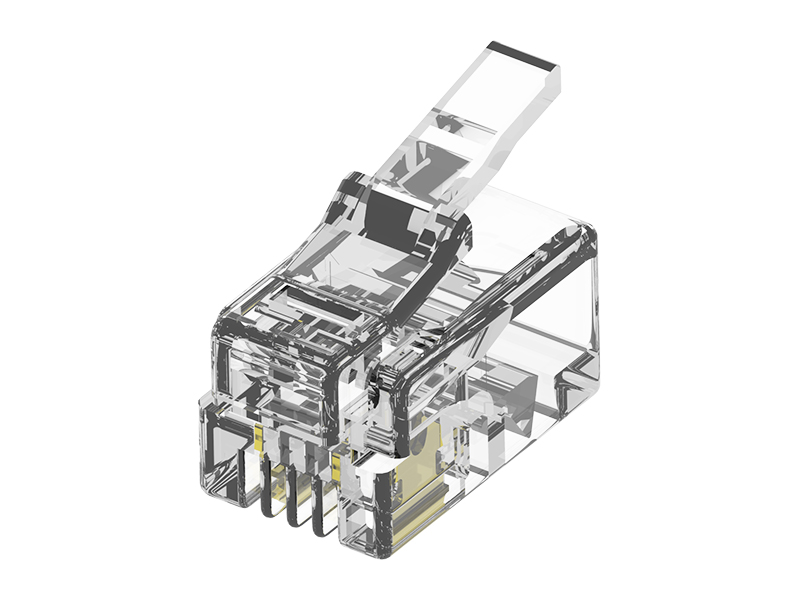

4P2C Telephone Plug

EXW qualitas princeps RJ11 4P2C telephonica plugae fiunt ab importatis materiis rudis.

Meet FCC Standard

● Diversum Aurum Crassitudo Available (50u", 30u", 15u", 6u", 3u", mico)

Coitus Cycles: Sursum ad MCC tempora

Apta pro 4PPoE (IEEE802.3bt/IEC60512-99-002) Applications

●Cable Wire Cange: 24AWG ad 26AWG

UL / POE / CE Certified & obsequi cum RoHS & REACH

Cum Special Designed Booz

Unumquodque obturaculum modularis inspicitur ab AOI apparatus (Optica Inspectionis Automatica) ad qualitatem praestandam. Lineas productionis plenae habemus cum plumbeo flexibili.

Grata OEM/ODM. EXW est optimus choice!

Nobis loquere Add to Part List

PREV PRODUCT：No previous article
NEXT PRODUCT：P44 4P4C Telephone Plug

Features:

Apta pro 4PPoE (IEEE802.3bt/IEC60512-99-002) Applications

Obsequio cum RoHS & REACH

• Part No

P42FE50V2 : RJ12 4P2C UTP obturaculum telephonicum destinatum ad cables telephonica plana.
P42RE50V2 : RJ12 4P2C UTP obturaculum telephonicum destinatum rotundum cables telephonicas.

• Quality Assurance

Unumquodque obturaculum modularis inspicitur ab AOI apparatus (Optica Inspectionis Automatica) ad qualitatem praestandam.

• Testimonium

UL/4PPoE Certified & obsequi cum RoHS & SPATIUM

• Applicationem

Restrictius exigentiis LAN occurre et constantem in frequentiis altis usque ad 100MHz impedimentum sustine.

• Diversus color Available

• Latin Rate Package

Spec.	Stipare Rate (PCs)	N.W(KG)	G.W(KG)	Ratio stipare	Lobortis Size
4P2C plug UTP	25,000	16.63	17.77	1,000pcs/blank sacculi 2 interiores greges/Carton	496362 265MM(0.05CBM)

• Electrical Characteres

UL Applicatio:	250 Valts AC max, AT AMP
Dielectric intentione obstantibus:	500 Volts AC
Resistentia Nulla:	100MΩ
Terminatio:	Resistentia 20MΩ max post environmental probatio

• Mechanica characteres

Vitae insertio:	cyclos admissura DCCL
Installation Temperature :	0/50℃
Operation & Repono Temperature :	-20/60℃
Cable ad plug tensile virtus:	20pound(min)
Vis trahens:	10N(max)

•Component

habitationem:	Polycarbonate, UL94V-2 or UL94V-0
Aurum Plating:	50u", 30u", 15u", 6u", 3u" vel mico
Contactus laminae:	Aeris Alloy
Contactus:	Filum solidum vel straded, ex 24 AWG ad 26AWG
Color:	Transparens vel alius color
