Obtentu 28AWG CAT.6 S/FTP ESG Patch Cordis

EXW Cat.6 S/FTP 28AWG gracilis panni funiculus cum subsidio diversae intentionis designatae. Minores diametri funiculi plus spatii & sumptus. Minor METIOR filum praebet flexibilitatem ad faciliorem motum.

Coniunge nobis in Reducendo Carbon Footprint per 35%

● Mutationi climatis respondendo introduximus ISO14064 & ISO14067 anno 2022. EXW creditum est ad redigendum Carbonem Footprint & Inferioris Greenhouse Gas Emissiones pro tutela Environmentali.

● EXW paulatim integrabit ESG in productionem nostram, et finem progressionis ESG sustinebilium consequetur.

Tuendi planetae cum Environmentally-amica electiones

Clima Actio & Reducing Carbon emissiones Substantialiter versus Diu terminus Clima Neutralitas

Operari simul ut edificem Sustainable Future cum ESG Products.

Sequere ANSI/TIA-568.2-D & ISO/IEC 11801

Save Space & High Density Compatible

Cat.6A / Cat.6 / Cat.5E Available

32AWG / 30AWG / 28AWG Available

Nuda Cuprum cum Stabilius euismod

50U" Aurum Plating RJ45 Plugs with Patented Design

Variis coloribus & CUMATIUM Available

Coitus Cycles: Sursum ad MCC tempora

Apta 4PPoE (IEEE802.3bt/IEC60512-99-002) Applications

Operatio Temperature Range: -10~60

4PPoE / CE Certified & Obsequio cum RoHS & SPATIUM

Save Space & Save Cost!

Princeps Density Compatible.

Nobis loquere Add to Part List

PREV PRODUCT：Obtentu 32AWG CAT.6 U/UTP ESG Patch Cordis
NEXT PRODUCT：Obtentu 30AWG CAT.6 S / FTP ESG Patch Cordis

EXW Patch Funiculi occurrentes signa:

ISO/IEC 11801:2011

ANSI/TIA-568.2-D

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

• EXW Part No

6SSXXSLIM : Cat.6 S/FTP 28AWF circumfusum rotundum gracilis Patch Funiculus, effictus, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test longitudinis intra 5M (providere originale test data nostro mos)

• Testimonium

UL/ETL/4PPoE/CE Certified & obsequi cum RoHS & SPATIUM

• Applicationem

* Aer Networking

* Computer Networking Project

* Audio & Data Transmissio

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Latin Rate Package

Longitudo (M)	Cat.6 S/FTP (pcs)	N.W(KG)	G.W(KG)	Ratio stipare	Lobortis Size
0.5	200	6.36	7.36	1pc / blank peram cum pittacium	400375 290MM(0.0435CBM)
1	120	6.28	7.28
2	100	9.03	10.03
3	80	9.89	10.89
5	50	9.75	10.75
10	25	9.73	10.73

Filum Color Code

album - caeruleum / caeruleum

album - orange / orange

album - viridis / viridis

album - brunneis / brunneis

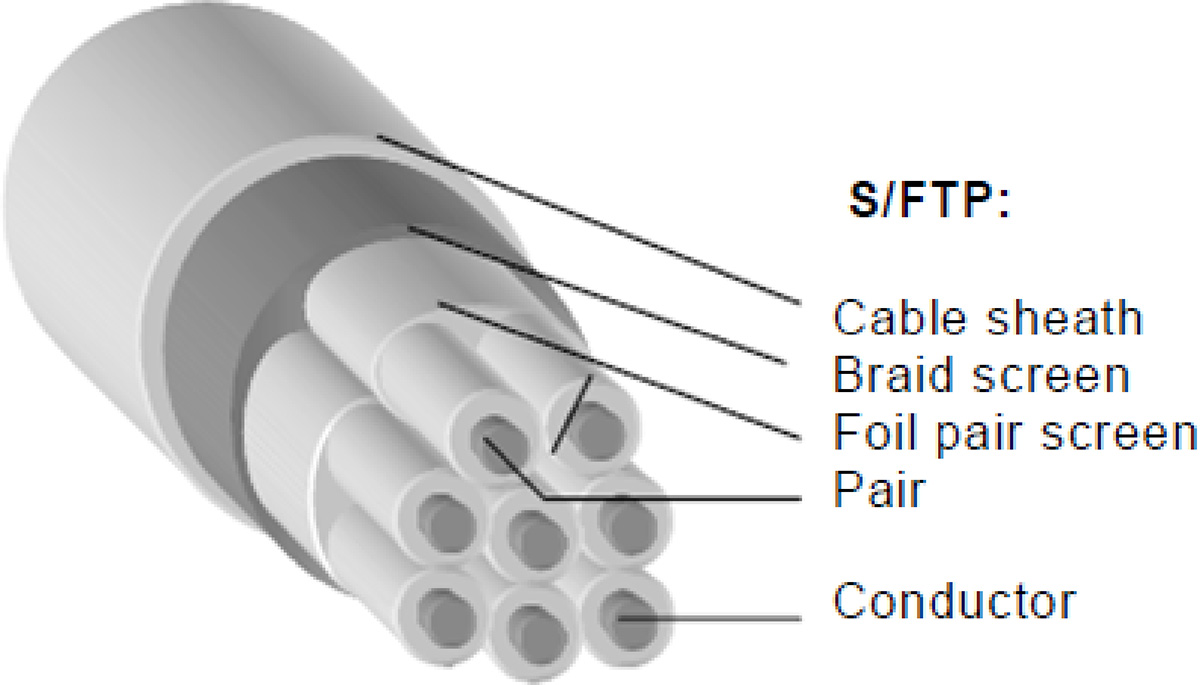

• Component

Conductor:	AWG 28 (Destradatum Cuprum 7x 0.127mm), 4-Pair , 8C
Insulatores:	PE
Insulatio Diameter:	0.85 ± 0.05mm
Braid scutum (Tinned Cuprum);	16/4/0.10T
Coverage:	≥40%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	5.6 ± 0.2mm

• Electrical Characteres

DEINDE Necessitas:	margo 1dB comparatur ANSI/TIA-568.2-D
Revertere damnum opus est:	margo 1dB comparatur ANSI/TIA-568.2-D
Current Rating:	1.5 A
Resistentia Nulla:	100 MΩ min
Contactus Resistentia:	20 mΩ max
Fortitudo dieelectric:	500 VAC(rmat)
Voltage:	72 VDC max

• Mechanica characteres

Vitae insertio:	cyclos admissura DCCL
Installation Temperature:	0/50℃
Operatio & Repono Temperature:	-20/60℃
Cable ad plug tensile virtus:	20pound(min)
Vis trahens:	10N(max)
