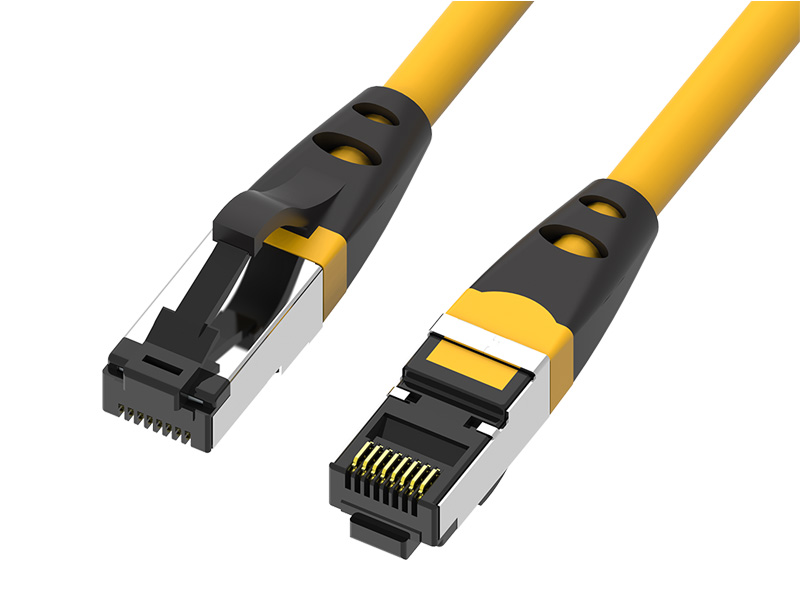

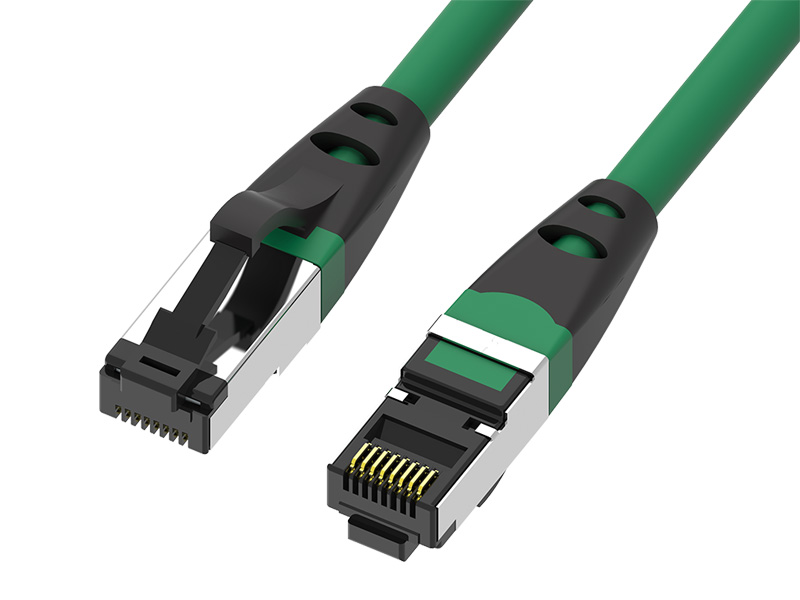

Defensi S / FTP CAT.6 Dual Color Draconis Funiculus

Longitudo (M)

Cat.6 S/FTP (pcs)

N.W(KG)

G.W(KG)

Ratio stipare

Lobortis Size

0.5

200

6.67

7.67

400*375* 290MM(0.0435CBM)

1

120

6.59

7.59

2

100

9.34

10.34

3

80

10.20

11.20

5

50

10.06

11.06

10

25

10.04

11.04

15

25

14.46

15.46

20

18

13.62

14.62

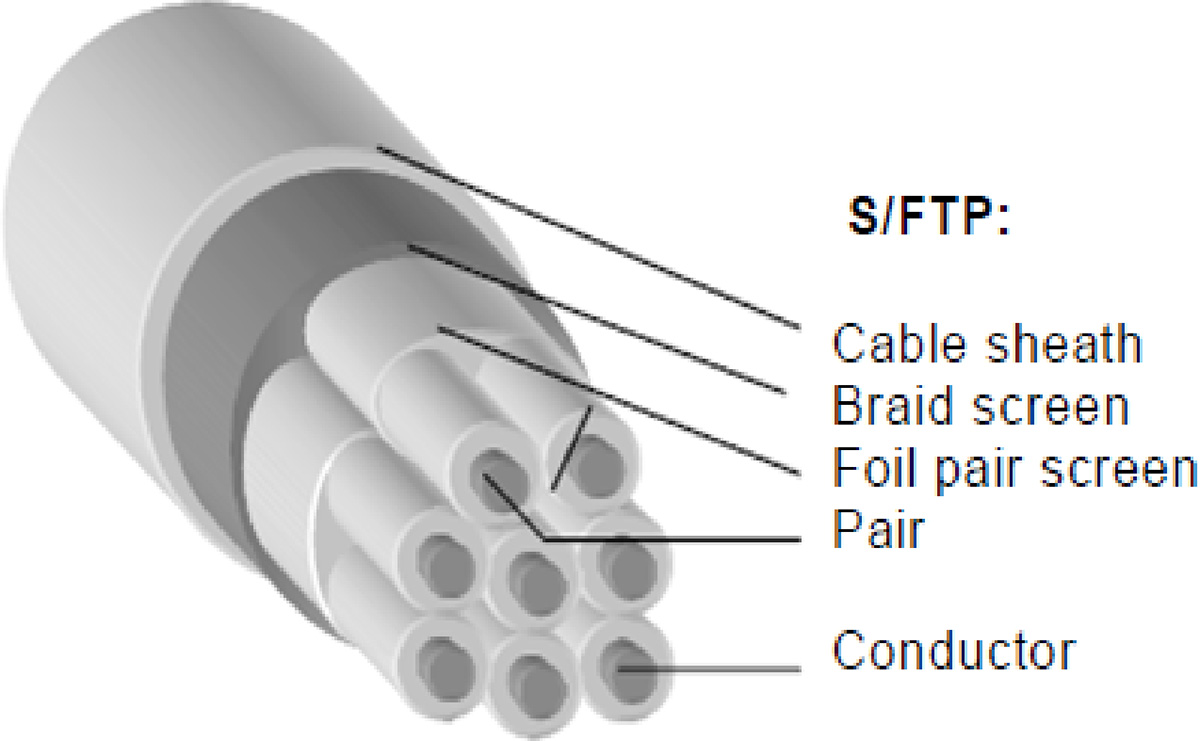

AWG 26 (A. Copper 7x 0.16mm), 4-Pair ,8C

Insulatores:

PE

Insulatio Diameter:

1.02 ± 0.05mm

Braid scutum (Tinned Cuprum);

16/5/0.10T

Coverage:

≥40%

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

6.2 ± 0.2mm

margo 1dB comparatur ANSI/TIA-568.2-D

Revertere damnum opus est:

margo 1dB comparatur ANSI/TIA-568.2-D

Current Rating:

1.5 A

Resistentia Nulla:

100 MΩ min

Contactus Resistentia:

20 mΩ max

Fortitudo dieelectric:

500 VAC(rmat)

Voltage:

72 VDC max

cyclos admissura DCCL

Installation Temperature:

0/50℃

Operatio & Repono Temperature:

-20/60℃

Cable ad plug tensile virtus:

20pound(min)

Vis trahens:

10N(max)
