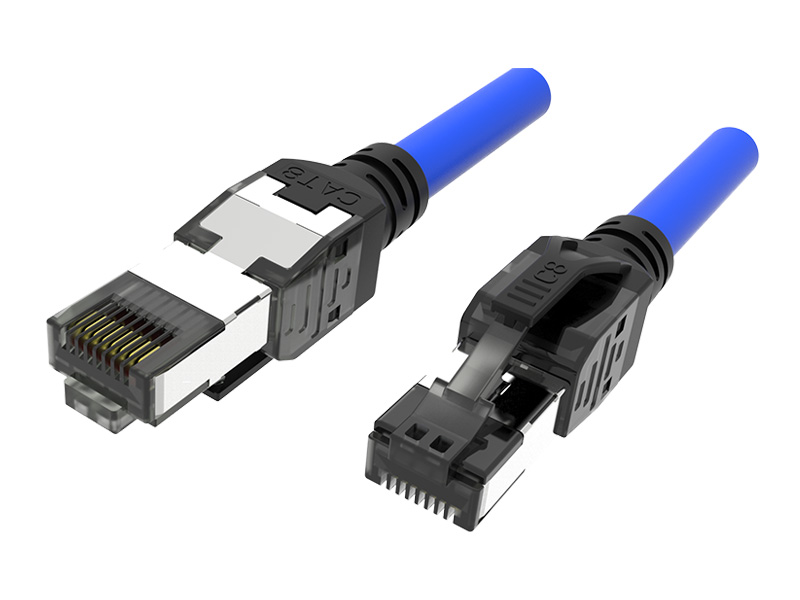

CAT.8 S/FTP Patch Cordis

EXW High quality Cat.8 S/FTP 24AWG Patch Funiculus certificatus ab GHMT. Support bandwiths of 2000MHz at Channel length up to 30 metres. 100% test ad qualitatem praestandam.

Sequere ANSI/TIA-568.2-D & ISO/IEC 11801

Support 25G BASIS-T & 40G BASIS-T

Support Bandwiths of 2000MHz ad Channel Longitudo usque ad XXX Meters

● Cable Wire Cange: 22 ~ 26AWG

Cables externae diametri:6.0 ~ 8.5mm

Nuda Cuprum cum Stabilius euismod

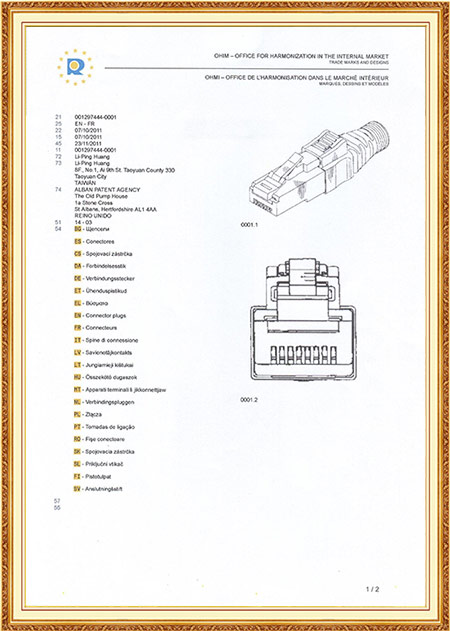

50U" Aurum Plating RJ45 Plugs with Patented Design

Variis coloribus & CUMATIUM Available

Coitus Cycles: Sursum ad MCC tempora

Apta 4PPoE (IEEE802.3bt/IEC60512-99-002) Applications

Operatio Temperature Range: -10~60

UL / ETL / DELTA / 4PPoE / CE Certified & obtemperare cum RoHS & SPATIUM

EXW custodit nova producta pro clientium deman d

Nobis loquere Add to Part List

PREV PRODUCT：No previous article
NEXT PRODUCT：No next article

EXW Patch Funiculi occurrentes signa:

ISO/IEC 11801:2011

ANSI/TIA-568.2-D

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

• EXW Part No

C8SSXX : Cat.8 S/FTP 24AWG Funiculus Patch circumfusus, effictus, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.8 Channel Test (providere originale test data nostris mos)

• Testimonium

GHMT/UL/4PPoE/CE Certified & obsequi cum RoHS & SPATIUM

• Applicationem

* Aer Networking

* Computer Networking Project

* Audio & Data Transmissio

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Latin Rate Package

Longitudo (M)	Cat.6 U/FTP (pcs)	N.W(KG)	G.W(KG)	Ratio stipare	Lobortis Size
0.5	80	8.62	9.52	1pc / blank peram cum pittacium	400375 290MM(0.0435CBM)
1	60	10.76	11.66
2	50	12.93	13.83
3	40	12.75	13.65
5	30	12.89	13.79
10	20	12.78	13.68

Filum Color Code

album - caeruleum / caeruleum

album - orange / orange

album - viridis / viridis

album - brunneis / brunneis

• Component

Conductor:	AWG 24 (Destradatum Cuprum 7x 0.195mm), 4-Pair, 8C
Insulatores:	PE
Insulatio Diameter:	1.4± 0.01mm
Braid scutum (Tinned Cuprum);	16/5/0.10T
Coverage:	≥40
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	7.4 ± 0.2mm

• Electrical Characteres

DEINDE Necessitas:	margo 1dB comparatur ANSI/TIA-568.2-D
Revertere damnum opus est:	margo 1dB comparatur ANSI/TIA-568.2-D
Current Rating:	1.5 A
Resistentia Nulla:	100 MΩ min
Contactus Resistentia:	20 mΩ max
Fortitudo dieelectric:	500 VAC(rmat)
Voltage:	72 VDC max

• Mechanica characteres

Vitae insertio:	cyclos admissura DCCL
Installation Temperature:	0/50℃
Operatio & Repono Temperature:	-20/60℃
Cable ad plug tensile virtus:	20pound(min)
Vis trahens:	10N(max)
