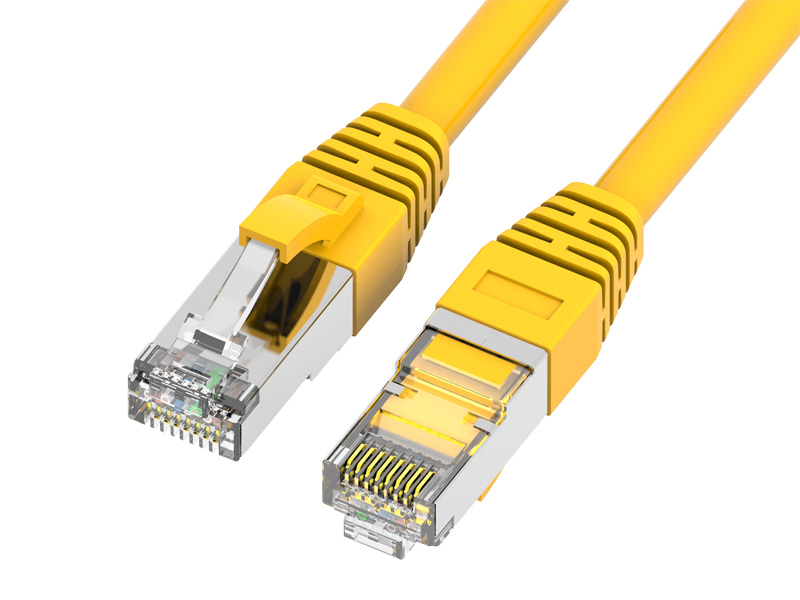

Defensi SF/UTP CAT.6 Patch Cordis

EXW High quality Cat.6 SF/UTP Patch Cord. Utraque extremitas cum scutatis 50U" auri crassitudines RJ45 viriles connexiones. 100% component experimentum ad qualitatem praestandam.

Sequere ANSI/TIA-568.2-D & ISO/IEC 11801

Cat.6 Patch Funiculus cum 100% Component Test by DSX-8000 & DSX-5000

Nuda Cuprum cum Stabilius euismod

50U" Aurum Plating RJ45 Plugs with Patented Design

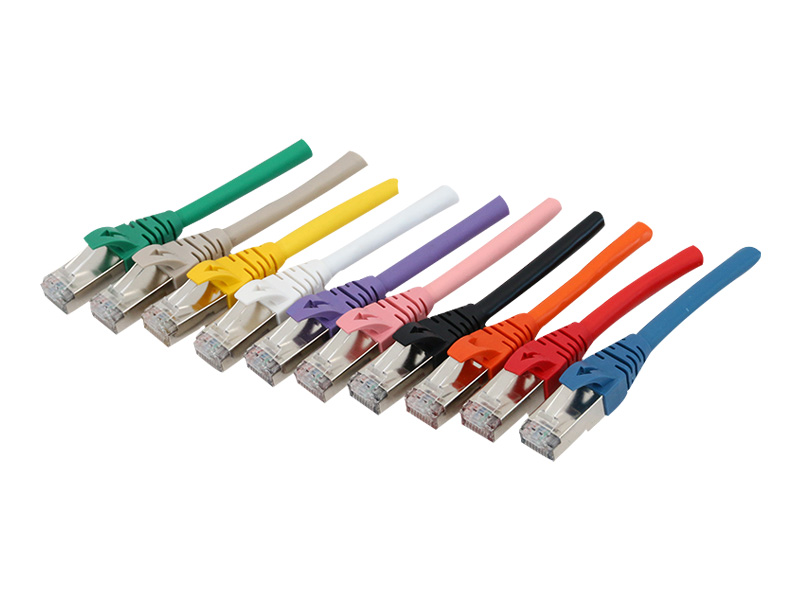

Variis coloribus & CUMATIUM Available

Coitus Cycles: Sursum ad MCC tempora

Apta 4PPoE (IEEE802.3bt/IEC60512-99-002) Applications

Operatio Temperature Range: -10~60

UL / ETL / DELTA / 4PPoE / CE Certified & obtemperare cum RoHS & SPATIUM

Grata OEM/ODM, EXW optima electio tua est!

Nobis loquere Add to Part List

PREV PRODUCT：Defensi S / FTP CAT.6 Patch Cordis
NEXT PRODUCT：Defensi U / FTP CAT.6 Patch Cordis

EXW Patch Funiculi occurrentes signa:

ISO/IEC 11801:2011

ANSI/TIA-568.2-D

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

• EXW Part No

6SFXX : Cat.6 SF/UTP Stranded Round Patch Funiculus, effictus, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test (providere originale test data nostris mos)

• Testimonium

UL/ETL/DELTA/4PPoE/CE Certified & obsequi cum RoHS & SPATIUM

• Applicationem

* Aer Networking

* Computer Networking Project

* Audio & Data Transmissio

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Latin Rate Package

Longitudo (M)	Cat.6 SF/UTP (pcs)	N.W(KG)	G.W(KG)	Ratio stipare	Lobortis Size
0.5	200	6.62	7.62	1pc / blank peram cum pittacium	400375 290MM(0.0435CBM)
1	120	6.54	7.54
2	100	9.29	10.29
3	80	10.15	11.15
5	50	10.01	11.01
10	25	9.99	10.99
15	25	14.41	15.41
20	18	13.57	14.57

Filum Color Code

album - caeruleum / caeruleum

album - orange / orange

album - viridis / viridis

album - brunneis / brunneis

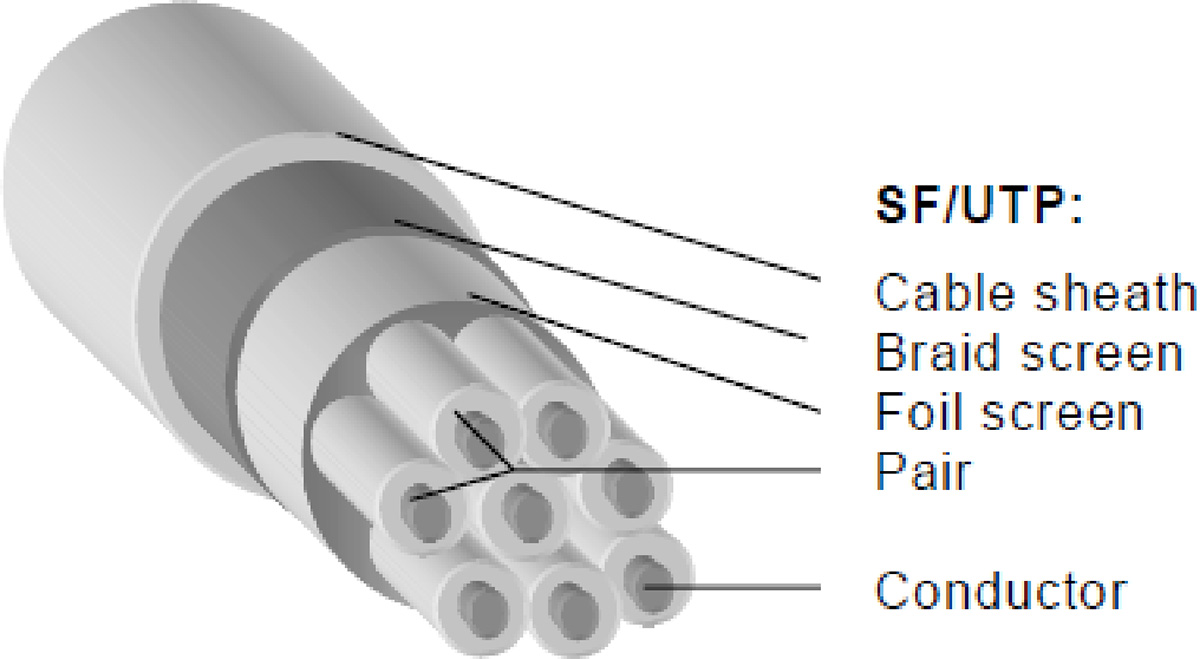

• Component

Conductor:	AWG 26 (Area 7x 0.16mm), 4-Pair ,8C
Insulatores:	PE
Insulators Diameter:	0.9 ± 0.05mm
Braid scutum (Tinned Cuprum);	16/5/0.10T
Coverage:	≥40
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.2 ± 0.2mm

• Electrical Characteres

DEINDE Necessitas:	margo 1dB comparatur ANSI/TIA-568.2-D
Revertere damnum opus est:	margo 1dB comparatur ANSI/TIA-568.2-D
Current Rating:	1.5 A
Resistentia Nulla:	100 MΩ min
Contactus Resistentia:	20 mΩ max
Fortitudo dieelectric:	500 VAC(rmat)
Voltage:	72 VDC max

• Mechanica characteres

Vitae insertio:	cyclos admissura DCCL
Installation Temperature:	0/50℃
Operatio & Repono Temperature:	-20/60℃
Cable ad plug tensile virtus:	20pound(min)
Vis trahens:	10N(max)
