FTP scutum CAT.5E Patch Cordis

EXW High quality Cat.5E FTP Patch Cord. Utraque extremitas cum scutatis 50U" auri crassitudines RJ45 viriles connexiones. 100% component experimentum ad qualitatem praestandam.

Sequere ANSI/TIA-568.2-D & ISO/IEC 11801

Cat.5E lacus funis cum C% continuatio Test. (Component Test libitum)

Nuda Cuprum cum Stabilius euismod

50U" Aurum Plating RJ45 Plugs with Patented Design

Variis coloribus & CUMATIUM Available

Coitus Cycles: Sursum ad MCC tempora

Apta 4PPoE (IEEE802.3bt/IEC60512-99-002) Applications

Operatio Temperature Range: -10~60

UL / ETL / DELTA / 4PPoE / CE Certified & obtemperare cum RoHS & SPATIUM

Grata OEM/ODM, EXW optima electio tua est!

Nobis loquere Add to Part List

PREV PRODUCT：Funiculus scutum SF/UTP CAT.5E Patch
NEXT PRODUCT：Obtentu U/UTP CAT.5E Patch Funiculus

EXW Patch Funiculi occurrentes signa:

ISO/IEC 11801:2011

ANSI/TIA-568.2-D

ANSI/TIA-1096-A (FCC Part 68)

EN50173-1:2011

UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

• EXW Part No

5EFTXX : Cat.5E FTP rotundum Patch Funiculum stratum, effictum, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Continuitas Test (Component Test Libitum)

• Testimonium

UL/ETL/DELTA/4PPoE/CE Certified & obsequi cum RoHS & SPATIUM

• Applicationem

* Aer Networking

* Computer Networking Project

* Audio & Data Transmissio

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Latin Rate Package

Longitudo (M)	Cat.SE FTP (pcs)	N.W(KG)	G.W(KG)	Ratio stipare	Lobortis Size
0.5	300	8.43	9.43	1pc / blank peram cum pittacium	400375 290MM(0.0435CBM)
1	150	7.21	8.21
2	100	8.91	9.91
3	80	9.89	10.89
5	50	9.51	10.51
10	25	9.38	10.38
15	20	11.46	12.46
20	20	15.65	16.65

Filum Color Code

album - caeruleum / caeruleum

album - orange / orange

album - viridis / viridis

album - brunneis / brunneis

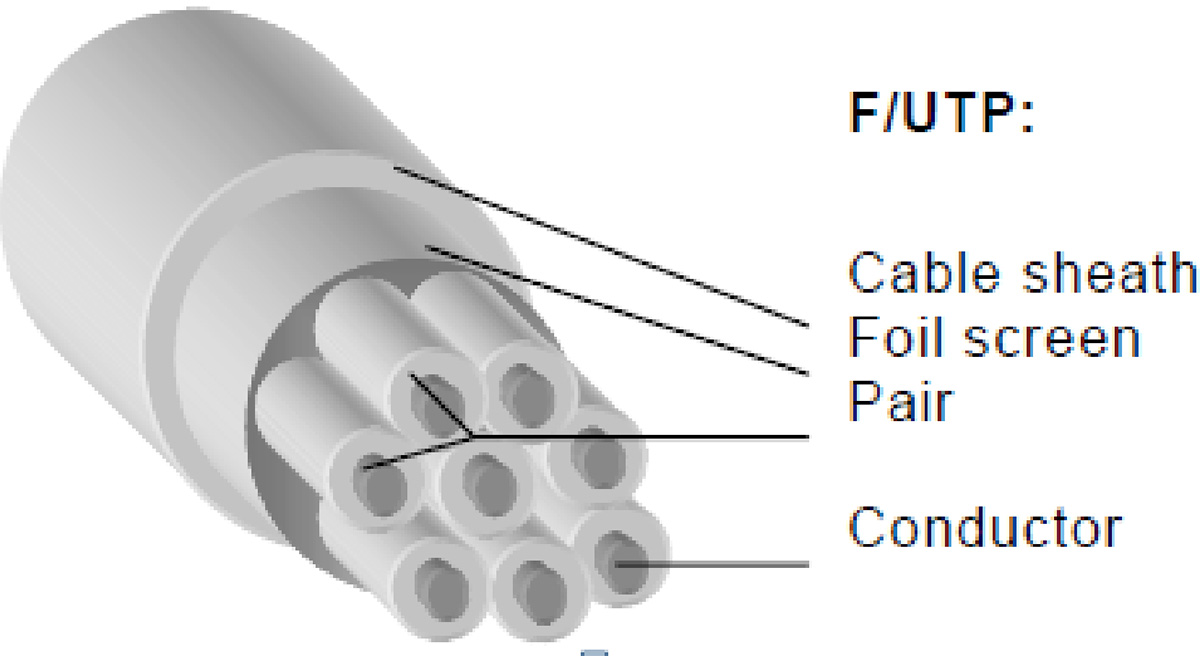

• Component

Conductor:	AWG 26 (A. Copper 7x 0.16mm), 4-Pair ,8C
Insulatores:	PE
Insulators Diameter:	0.9 ± 0.05mm
Clypeus (Tinned Cupper);	Aluminium/Polyester
Coverage:	≥125%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.0 ± 0.2mm

• Electrical Characteres

DEINDE Necessitas:	margo 1dB comparatur ANSI/TIA-568.2-D
Revertere damnum opus est:	margo 1dB comparatur ANSI/TIA-568.2-D
Current Rating:	1.5 A
Resistentia Nulla:	100 MΩ min
Contactus Resistentia:	20 mΩ max
Fortitudo dieelectric:	500 VAC(rmat)
Voltage:	72 VDC max

• Mechanica characteres

Vitae insertio:	cyclos admissura DCCL
Installation Temperature:	0/50℃
Operatio & Repono Temperature:	-20/60℃
Cable ad plug tensile virtus:	20pound(min)
Vis trahens:	10N(max)
