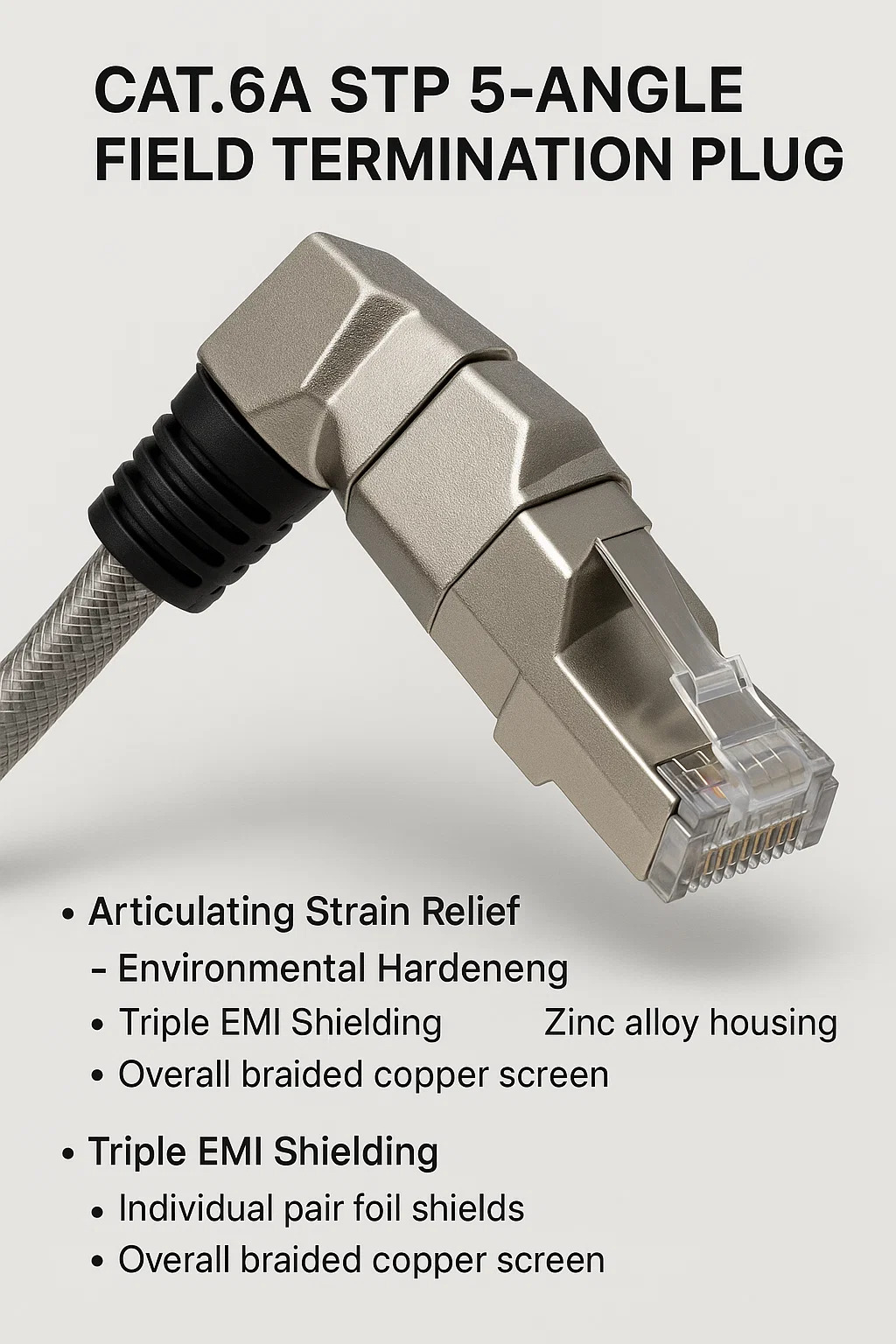

Cat.6a STP V angulus agro terminum obturaculum
I. Core consilio proposito
Space Optimization: Features a XLV ° anglos corpus cum V-positus prisciplinability (± XXX ° verticalis, ± XV ° horizontalis) ad route rumpat in stricta spatia (e.g., server racks, imperium cabinets).
Triplex EMI protegit: combines:
Singula par ffoyle clips
Altiore Braided aeris screen
Zinc Stacks Housing caudices intercessiones ex Motors / VFDs in Industrial Occasus.
II. Structural innovations
Articulando iactabantur relevium:
PIVoting torquem absorbet vibrationis / Flex accentus (E.G .: robotic arma, Agvs).
Environmental Hardening:
IP68-rated Sigillis (Silicone gaskets fila Streaded cincinno) resistere aqua / pulvis ingress.
High-officium Contactus:
50μ "aurum, patella paxillos sustinere 100,000 et Cycles et 90w Poe sine arrogant.
III. Termination Workflow
Clypeus currere cucurri:
Complicare altiore cingulo super cable iaccam; Fibulae sub metallum ferrule.
Trim par pulsu ad exponere 3mm; terminantur ad grounding tabs.
Wire Tractable:
Ponere <8mm untwist; inserere in keyed IDC foramina (T568b Latin).
Angulus clausum:
Set orientation; torque torquem ad 0.6 N · M pro sigillum compressionem.
IV. Key applications
Robotics: cable administratione in articulated arma (ISO (IX) CDIX compatibility).
Mobile Machinery: Vibrationis-Gravis Deployments (impedimenta, Forklift eu).
Dura environments: cibum processus (washdown-rated) eget plantis.
V. ADVENTUM VS. Recta plugs
| Provocatio | V-angle solution | Recta plug periculum |
|---|---|---|
| Congesta tabulata | Clears adjacent portus / cables statim. | Cable Kinks ad portum ingressum. |
| Constans vibrationis | Articulation impedit filum lassitudine. | Accentus Fracturae Condors. |
| Hotspots Tactus | CCCLX ° clypeus continuas. | Terrae erumpit per motus. |
VI. Critical institutionem praecepta
Clypeus vinculum: Quin ≤0.1ω Resistentia inter plug crusta et cable screen.
Flectere radii, ponere ≥4 × cable diameter postquam angulus temperatio.
Tool postulationem: Usus humilis-profile Punch-descendit instrumentum ad angulos aditus.
VII. Defectum Indicatores
Poe resets: pauper pin contactus vel scutum grounding defectum.
Celeritas guttae: untwists pairs> 10mm vel emi leakage.
Overheating, overloaded pins (nimium 90w Poe).
VIII. Limitations
Cable Compatibility: requirit Cat.6a STP (s / FTP et F / UTP).
Portus Profundum, ut non apta vadum bases (quin fabrica eu).
Custus: 2-3 × premium super vexillum plugs.
